OptiMate SOLAR + 20W Solar Panel
OptiMate Solar - the worlds most efficient Solar Pulse Charger, Tester & Maintainer
Charger by day, Monitor by night.
The new OptiMate Solar range features a smart charger-monitor which provides battery status information when charging and when the battery is at rest overnight. The OptiMate Solar TM-522 2 Amp smart charger-controller has a 4-LED panel for comprehensive information on charge progress and battery status.
OptiMate Solar charge kits are fully automatic. Mount the panel in a suitable location to receive maximum sunlight, hook up the charger-monitor to the battery and walk away. No more battery problems.
When the panel receives sun, the SOLAR CHARGE LED blinks confirming solar power is being delivered and one of the three battery status LEDs (SAVE, CHARGE, MAINTAIN) indicates charge progress. OptiMate Solar converts low solar energy to a high pulse charge which improves solar charge efficiency. When night falls or if the smart charger-monitor senses no solar power is being delivered it changes into a battery monitor with one of the three charge status lights now indicating battery status every three seconds.

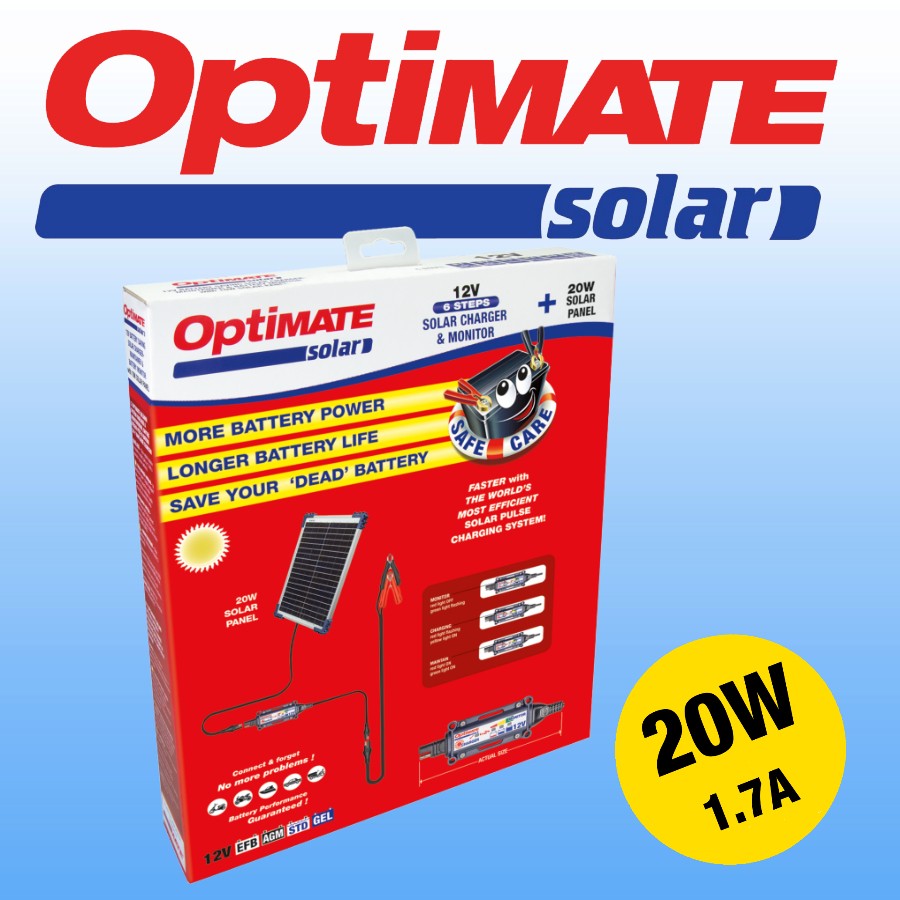

The 20W TM-522-2 kit (12V 1.6A max.) is ideal for all powersports vehicles. The weatherproof solar panel includes corner mounts for easy wall or roof mounting. Each kit includes a high intensity poly crystalline panel with a 2m power cable, an OptiMate O-1 weatherproof battery lead, an OptiMate O-4 battery clamp lead and the outdoor rated OptiMate smart charger-controller (TM-522) with a 1m charge cable.
Technical Specifications
Solar Panel:
POWER: 20 Watts (max)
VOLTS: 12V nominal, 22V max
USE: Outdoor
STYLE: Weatherproof, aluminium frame with 4 x mounting brackets, output cable 200cm with SAE connector
Solar Panel Size: 445 x 360 x 30 mm
OptiMate Charge Controller:
CHARGING AMPS: 1.66A from 20W panel (max average current)
USE: Indoor / Outdoor (lowest temperature: -4°F / -20°C)
SAVE: Low Volt Start of 1V
IDEAL FOR: STD, AGM & GEL 12V batteries from 5 – 80Ah
INPUT: 15 – 22V
STYLE: Weatherproof charge controller case
Included accessories: 01 weatherproof permanent lead; 04 battery clamp lead; TA255 suction mounts
Warranty: 3 Years
